Machine Architecture and Control System

The core frame utilizes a welded steel base with stress-relieved machining surfaces, eliminating vibration-induced measurement drift during extended shifts. A direct-drive servo motor couples to a precision ball screw assembly for the measuring carriage, while a separate high-torque rotary servo powers the rotary shear cutting head. This dual-servo architecture allows independent optimization of feed speed and cut timing — critical when processing mixed zipper types on a single line.

Control logic runs on a PLC platform with deterministic scan time under 2 ms. The HMI presents a recipe-based interface where operators store up to 500 product profiles, each defining tape width, tooth pitch, cut length, batch quantity, and end-treatment parameters (notch, angle, seal). Recipe changes execute in under 3 seconds without mechanical adjustment, reducing changeover downtime between SKUs.

Length measurement employs a non-contact laser micrometer sampling at 10 kHz, cross-referenced against an encoder on the drive roller. The closed-loop algorithm compensates for tape stretch in real time — a common issue with polyester and nylon coils under tension — by dynamically adjusting feed increments based on material elongation profiles stored per recipe.

Cutting Technology and Edge Quality

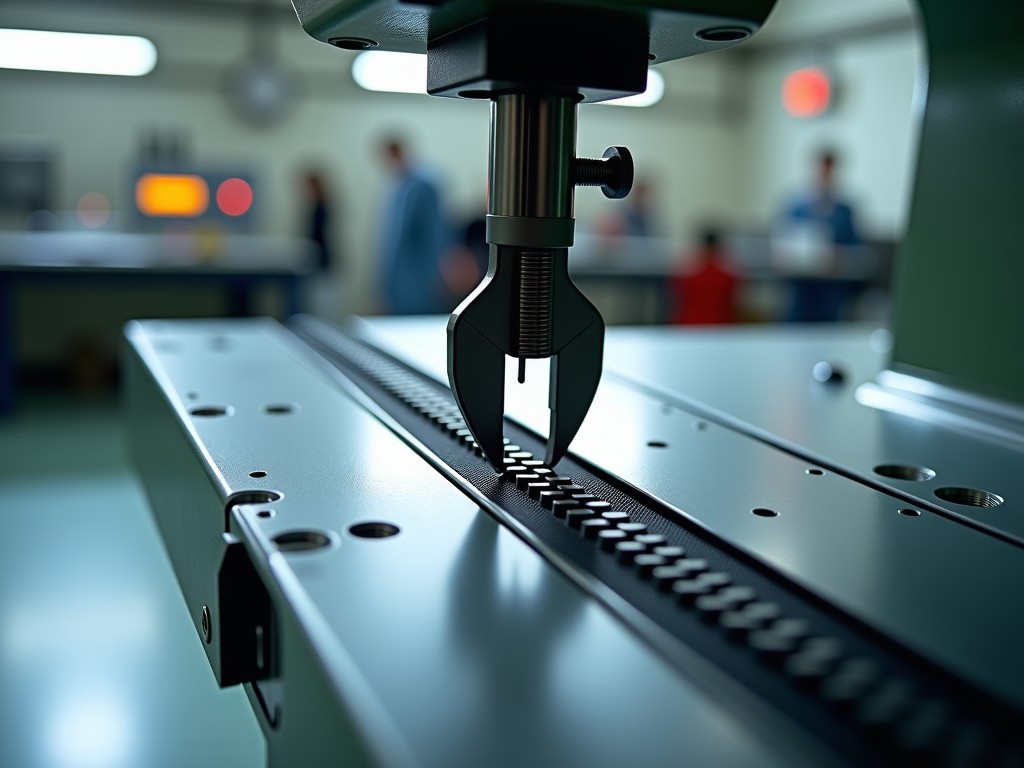

The rotary shear utilizes opposing carbide blades with a 0.02 mm clearance, maintained by a pneumatic preload system that self-adjusts for blade wear. Cut edge quality meets automotive interior trim specifications: burr height under 0.1 mm, no fiber pull-out on woven tapes, and consistent 90° squareness verified by inline vision inspection. For heat-sealable tapes, an optional ultrasonic sealing module activates immediately post-cut, preventing fray at the zipper chain attachment point.

Blade life typically reaches 2 million cuts on standard polyester tape before resharpening. The machine logs cut count per blade set and triggers a predictive maintenance alert at 80% rated life. Blade cassette exchange requires no tools and completes in under 90 seconds, minimizing planned downtime.

Integration and Automation Readiness

Every unit ships with EtherNet/IP, PROFINET, and Modbus TCP interfaces as standard, enabling direct integration into MES/ERP environments for real-time production tracking. The PLC exposes 40+ process tags — current length, cut count, blade wear index, material tension, error codes — allowing plant-level dashboards to monitor OEE without additional sensors.

For fully automated cells, the machine accepts discrete start/stop, recipe select, and batch reset signals via a 24 V I/O terminal strip. An optional robotic pick-and-place interface synchronizes cut completion with downstream gantry or delta robot timing, eliminating buffer accumulation between cutting and chain assembly stations.

Remote diagnostics capability includes encrypted VPN access for firmware updates, parameter backup/restore, and real-time oscilloscope-style tracing of servo loops — reducing mean time to resolution for control-related issues from hours to minutes when our application engineers connect remotely.

Material Handling and Tension Control

The unwind station incorporates a pneumatically actuated dancer arm with a load cell feedback loop, maintaining constant tape tension between 2–15 N adjustable per recipe. This prevents the length measurement errors caused by slack take-up or over-tension stretch, particularly critical for low-modulus cotton tapes and high-elongation spandex-blend chains.

A motorized rewind unit with torque-controlled spindle collects cut pieces into neat stacks or roll form, selectable via HMI. Stack height limit and piece count per bundle are programmable, enabling direct feed into automatic packaging or bagging equipment downstream. For just-in-time kitting operations, an optional diverter gate routes every Nth piece to a quality audit station without stopping production.

Quality Assurance and Validation

Each machine undergoes a 48-hour run-in at rated speed with the customer's actual zipper tape samples before shipment. Statistical process capability (Cpk) is measured across 500 consecutive cuts and documented in the factory acceptance test (FAT) report. The report includes laser micrometer traceability certificates calibrated to ISO 17025 standards, servo tuning parameters, and a complete bill of materials with supplier traceability for critical components.

On-site installation includes operator training, recipe development for the customer's top 10 SKUs, and a 30-day production support period with weekly remote performance reviews. Spare parts kits — categorized as critical (blades, encoder, laser module), recommended (servo drive, PLC I/O cards), and consumable (filters, seals, lubricants) — are quoted separately based on agreed annual volume.

Typical Application Scenarios

• Automotive seating zipper chains requiring ±0.3 mm length consistency for robotic assembly alignment
• Outdoor gear manufacturers processing mixed coil and molded tooth zippers on flexible production lines
• Luggage and bag factories needing rapid changeover between 50+ SKUs per shift
• Technical textile converters adding value by supplying pre-cut, sealed zipper tape kits to OEMs
• Medical textile producers requiring validated, traceable cut lengths for sterile packaging zippers
